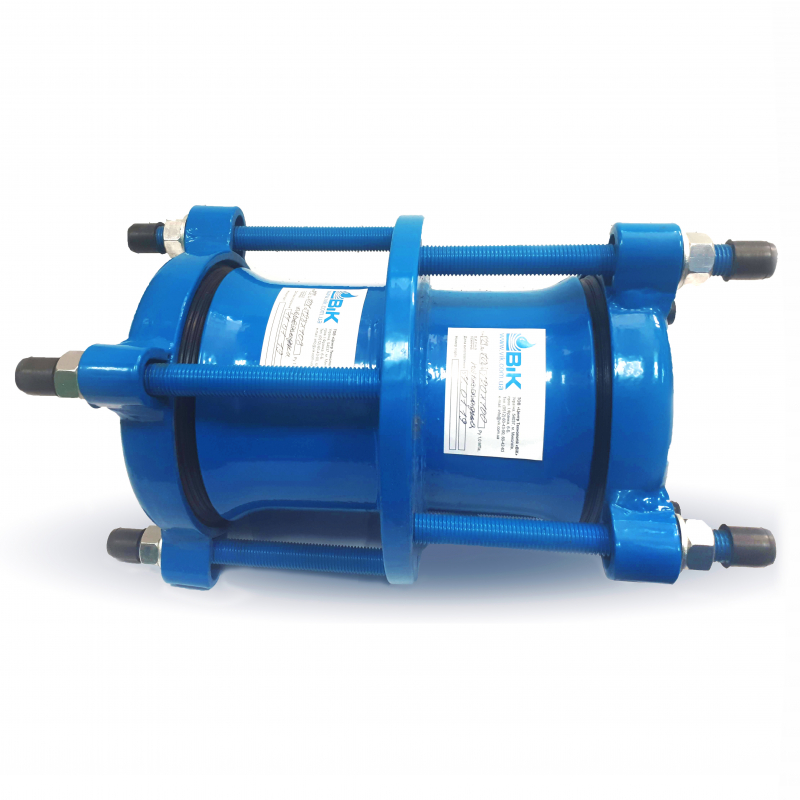

Transition Coupling

Purpose

Used for flangeless connection of pipelines made of both polyethylene and other dissimilar materials. Can be used in emergency operations.

Technical characteristics

● The coupling is manufactured in accordance with TUU 27.2-33437218.002:2006.

● Axial deviation of pipes on each side ± 6°.

● The coupling body is made of steel grade St3ps, GOST 14637.

● The pressure flange is made of steel grade St3ps, GOST 14637. The axial dimensions of the flange correspond to the typical dimensions of the flange for a working pressure of 10 kg/cm².

● The design of the coupling provides installation in any position.

● The rubber seal is made of rubber grade IRP 1068; rubber mixture grade 5S-3831. The shape of the seal allows for connection to pipes with minor defects on the pipe surface.

● Hexagon nuts are galvanized according to GOST 5915; washers according to GOST 11371; M16 studs are galvanized according to GOST 22034.

● The cold galvanizing method is used, the layer thickness is not less than 9 microns (M16 studs and above (depending on the diameter of the couplings) have a layer thickness of not less than 250 microns). The ends of the studs are protected by plastic caps.

● Type of sealing surfaces of flanges according to GOST 12815, TYPE 1.2 or 3.

● Anti-corrosion coating of couplings according to GOST 9.032, coating class IV minimum 250 microns. The anti-corrosion coating is solid, strong, smooth, without gaps and bubbles and has a strong adhesion to the metal.

Warranty

The manufacturer guarantees the flawless performance of the original products of its own production of compression couplings, provided that the consumer complies with the conditions of operation, transportation, storage, and installation.
